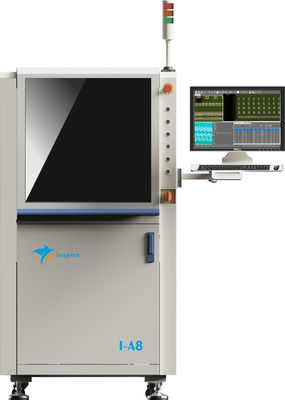

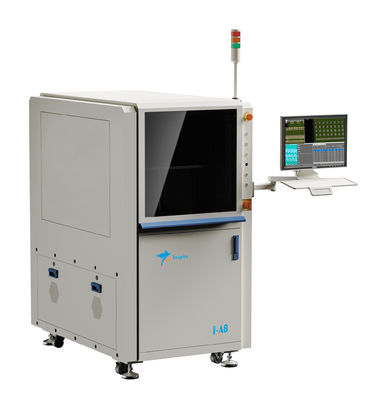

Full Automatic First Article Inspection Machine I-A8 for PCB & Components, First Piece Inspection Equipment
| Place of Origin | China |
|---|---|
| Brand Name | Sunvish |
| Certification | CE |
| Model Number | I-A8 |
| Minimum Order Quantity | 1 |
| Packaging Details | Plywood case+vacuum package |
| Delivery Time | 4 weeks |
| Supply Ability | 20 units machine per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xAutomatic First Article Inspection Machine Model: I-A8
PCB size:50*50mm-460*400mm(L*W) Max. height of component:Top height 35mm, Bottom height 30mm
Flying needle detection: automatic rotation, pitch adjustment Screen printing detection:visual determination of IC and other components of the error, leakage, reverse Empty paste detection:laser detection of empty position
Camera: 1200W
Motion control accuracy: Repeatability ±1um Location ±3um
Tonghui bridge:Frequency 20Hz-300KHz Accuracy 0.05% Display Range L 0.01nH~9.9999kH,C 0.0001pF~9.9999F,R 0.1mΩ~99.999MΩ
Machine Dimension & Weight:1310*860*1600mm(L*W*H) 770kg
| Name | Automatic first piece inspection machine |
| Model | I-A8 |
| Power | AC220V 50/60Hz 2KW |
| Dimension & Weight | 1310*860*1600mm(L*W*H) 770kg |
| Motioncontrol platform | Marble + linear motor |
| Motion control accuracy | Repeatability:±1um Location::±3um |
| Camera | 1200W |
| Tonghui bridge | Frequency :20Hz-300KHz Accuracy :0.05% |
| Display range :L 0.01nH~9.9999kH, C 0.0001pF~9.9999F, R 0.1mΩ~ 99.9999mΩ | |
| Host configuration | CPU: I7 Memory: 32GB Hard disk :256 solid state +1T mechanical |
| Test past rate | More than 99% |
| Detection type | Rubber board/red rubber board |
| Component specification | 01005 and above components |
| Test Angle | Any angle |
| Test speed | 1PCS/1S |
| PCB size speed | 50*50mm-460*400mm(L*w) |
| Max. height of component | top height:35mm,bottom height:30mm |
| One-minute programming | One minute programming, CAD/BOM automatic matching |
| Flying needle detection | Automatic rotation, pitch adjustment |
| Screen printing detection | Visual determination of IC and other components of the error, leakage, reverse |
| Empty paste detection | Laser detection of empty position |
| LED lighting | 0-5v Adjustable voltage |
| Voice broadcast | The test results are announced by voice |
| Test report | Automatic report generation |
| Authority management | Three-level management rights |
| Language | Supports multiple language switching |
| Product advantage | Accurate test | 01005 pass rate 98% |
| Quick programming | One minute programming, CAD/BOM automatic matching. | |
| Intelligent positioning | System automatic positioning. | |
| Screen check speed | synchronous detection, no time consuming. | |
| Quick needle change | One minute needle change, automatic calibration. |
