PCB Inkjet Printing Machine for text, symbol, two-dimensional code, barcode, serial number

  • PCB Inkjet Printing Machine for text, symbol, two-dimensional code, barcode, serial number
  • PCB Inkjet Printing Machine for text, symbol, two-dimensional code, barcode, serial number
Place of Origin China
Brand Name Sunvish
Certification CE, ROSH
Model Number SV-BM1-S4C10
Minimum Order Quantity 1
Packaging Details Plywood case
Delivery Time 4 weeks
Supply Ability 20 units machine per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Brief introduction of single table hard PCB board character inkjet printer



Purpose: Mainly used in PCB industry, in the PCB production process to print text, symbol, two-dimensional code, barcode, white oil block, serial number and etc. It can effectively replace the traditional screen printing operations, reduce the film rendering, screen making, screen washing water and other consumables, reduce the cost loss.

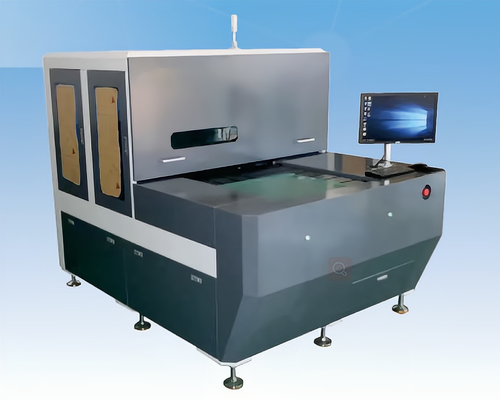

PCB Inkjet Printing Machine for text, symbol, two-dimensional code, barcode, serial number 0

Item SV-BM1-S4C10
Inkjet head brand and QTY kyocera KM1024i (6988H)1-4 PCS
Ink Taiyo / ABQ /CROSS ink
Min.line width 3mil (75um)
Min.character height 0.5mm
Min.character size 500um x 400um
Max.resolution 900dpi x 1440dpi
Max.printing speed 500mm/s
Max.printing size 630mm x 730mm
Thickness 0~5 mm
Positioning CCD auto-positioning,3 points or 4 points positioning
Position Accuracy 35um
Printing mode 2~4pass
Curing Method UV-LED
Clamp mode included side
Feeding mode Manual loading and unloading
Combined efficiency 100~120 Side/hour
Equipment dimension 2160mm x 1580mm x 1646mm
Equipment weight 2000KG

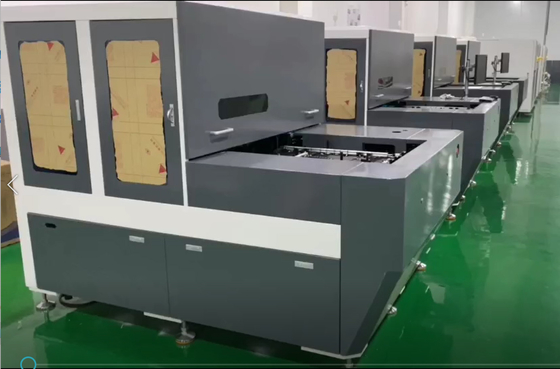

PCB Inkjet Printing Machine for text, symbol, two-dimensional code, barcode, serial number 1

PCB Inkjet Printing Machine for text, symbol, two-dimensional code, barcode, serial number 2

PCB Inkjet Printing Machine for text, symbol, two-dimensional code, barcode, serial number 3
