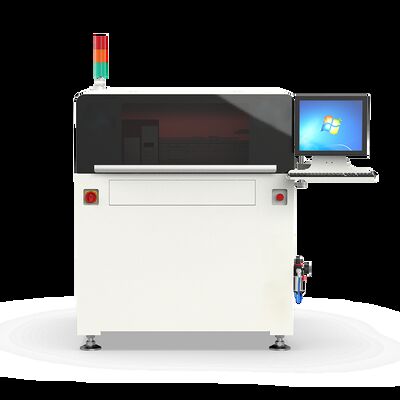

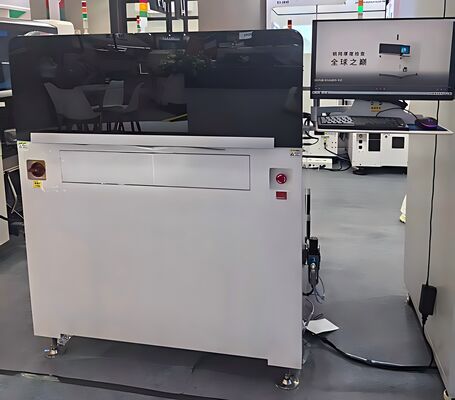

AI automatic AOI Machine SMT Inspection System SVII-K100 for 736*736mm stencil testing

  • AI automatic AOI Machine SMT Inspection System SVII-K100 for 736*736mm stencil testing
Place of Origin China
Brand Name Sunvishe
Certification CE, ROSH
Model Number SVII-K100
Packaging Details Plywood case+vacuum package
Delivery Time 4 weeks
Product Details
Application New Stencil Incoming Inspection Or Inspection After Cleaning Dimension L1130*W1215*H1500mm
Inspection Item Aperture Area, Size, Postion, Offset, Burr, Multi Hole, Miss Hole, Tension Meter, Thickness Etc. Color White
Stencil Size 736mmx736mm After-sales Service 12 Months
Leave a Message
Product Description

1. Purpose of use


Improve production efficiency and yield
Standardization of stencil management


2. Main features


High precision, fast speed, simple operation


3. Main functions


Area, position, size, offset, foreign body, hole clogging, missing hole, multi holde, burr,tension


4. Extended functions


Cooperate with customers' factory production information management system (MES)



Product Advantage


1,Solve the problem of incoming and cleaning stencils

2,Establish stencil control standards and improve the production management system

3,Automatic inspection instead of manual inspection, improve product quality and enhance product competitiveness

4,Solve excess solder, insufficient solder, welding without stopping and other printing problems from the source

5,The 01005 component and even more smaller component are widely used in the production now, high precision inspect is in line with future development trends



Many manufacturers still rely on visual inspection to verify incoming stencils. While visual checks can identify obvious issues, they often cannot detect dimensional variations, aperture inaccuracies, burrs, or other defects that can impact solder paste deposition and overall assembly quality.



By implementing automated stencil inspection in-house, manufacturers can:

  • Verify aperture dimensions and stencil quality with objective, repeatable measurements
  • Detect defects that may not be visible during manual inspection
  • Improve solder paste printing consistency
  • Reduce rework, scrap, and production downtime caused by stencil-related issues
  • Generate documented inspection reports for quality control and traceability
  • Monitor stencil supplier performance using measurable data



As component sizes continue to shrink and process tolerances become tighter, automated inspection provides a reliable way to ensure every stencil meets specification before it reaches the production floor.
