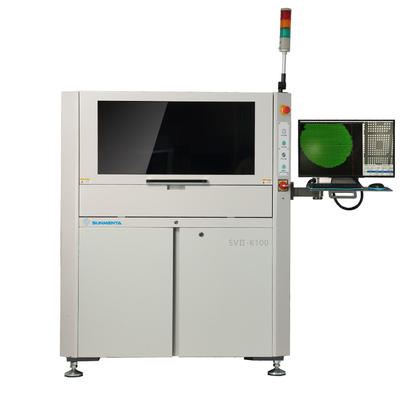

Stencil Inspection Machine System SVII-K100S for Stencil size 750mm×1050mm Max

Product Description:

The SVII-K100 model Stencil Inspection Machine System is an advanced, state-of-the-art inspection solution engineered to meet the rigorous demands of modern electronics manufacturing. This sophisticated system is designed to provide meticulous inspection of stencils used in the printing process of solder paste onto printed circuit boards (PCBs). Stencil printing quality is critical to the success of the PCB assembly process, making the SVII-K100 an essential tool for ensuring the highest standards of production quality and efficiency.

With dimensions of 1130mm X 1215mm X 1500mm, the SVII-K100 stencil inspection machine is compact yet robust, easily integrated into existing production lines without requiring extensive space. Its footprint has been optimized to provide the best balance between space-saving and functionality, allowing for easy accessibility and maintenance.

The system boasts a high-resolution 10μm camera, which ensures that even the most minute discrepancies and defects in the stencil are detected with exceptional precision. The advanced optics of the SVII-K100, combined with its powerful image processing capabilities, allow for the detection of a wide range of stencil defects such as insufficient solder openings, bridging, smudging, and blockages. This high level of resolution is a critical feature that contributes to the machine’s ability to safeguard the integrity of the PCB assembly process.

At the heart of the SVII-K100 stencil inspection machine is a robust operating system, Windows 10, which provides a stable and intuitive user interface. The use of a familiar operating system ensures ease of use and compatibility with standard software used in the industry, allowing operators to quickly learn and efficiently handle the inspection process. Windows 10 also ensures that the machine can be easily updated with the latest software enhancements and security patches, keeping the system at the forefront of technology.

The cutting-edge inspection method employed by the SVII-K100 is 3D Automated Optical Inspection (3D AOI). This method uses advanced algorithms to reconstruct the three-dimensional profile of the stencil apertures, providing a comprehensive analysis of the stencil’s condition. The 3D AOI technology enables the system to not only detect surface defects but also to assess the volume and shape of the solder paste deposits, ensuring that each print meets the specified parameters for a flawless assembly process.

The stencil inspection machine is equipped with a variety of features designed to maximize efficiency and reliability. Automated calibration routines ensure that the machine maintains peak accuracy over time, reducing the need for frequent manual adjustments. An intuitive reporting system provides detailed inspection data and statistics, enabling operators to make informed decisions about stencil maintenance and cleaning schedules. The SVII-K100 also incorporates advanced data handling capabilities, allowing for the archiving and retrieval of inspection records, which are essential for traceability and quality control purposes.

Overall, the SVII-K100 stencil inspection machine is a vital component in the PCB assembly industry. It provides manufacturers with the assurance that every stencil used in their production processes is free of defects and ready to deliver high-quality solder paste prints. Its combination of high-resolution inspection, user-friendly operation, and 3D AOI technology makes it an indispensable tool for maintaining excellence in PCB production. With the SVII-K100, manufacturers can expect a significant reduction in stencil-related defects, leading to improved yield, reduced rework costs, and enhanced product reliability.

Features:

• Product Name: Stencil Inspection Machine System
• Operating System: Windows 10
• Application: Stencil Inspection
• Interface: Ethernet/Wifi
• Model: SVII-K100
• Lighting System:
  • Top: Red Coaxial Light
  • Bottom: Custom White LED Light Source

Technical Parameters:

Applications:

The Sunmenta SVII-K100 stencil inspection machine is an advanced solution designed for high-precision inspection tasks within various production environments. Originating from China and holding the prestigious CE certification, this system guarantees compliance with international quality and safety standards. With a minimum order quantity of just one, it is accessible for businesses of any size looking to enhance their quality control procedures.

The stencil inspection machine by Sunmenta is particularly applicable in scenarios where solder paste inspection is critical, such as in the assembly of printed circuit boards (PCBs) for consumer electronics, automotive electronics, and medical devices. The SVII-K100 model boasts a sophisticated 3D Automated Optical Inspection (3D AOI) method, ensuring thorough and accurate detection of any defects or inconsistencies in solder paste application.

Equipped with a proprietary software package, the Sunmenta stencil inspection machine ensures that operators can easily navigate through complex inspection processes with a user-friendly interface. This software is designed to be intuitive, providing immediate feedback and detailed reports that can be shared across teams via its Ethernet/Wifi connectivity options. Such features make the SVII-K100 an indispensable tool in environments where traceability and continuous improvement are paramount.

The stencil inspection machine's robust design includes a power supply compatible with 220V AC, 50/60Hz, making it suitable for various regional power standards around the globe. The system's impressive field of view, up to 18.6 mm x 14 mm, allows for efficient inspection of a wide range of stencil sizes, thus maximizing the machine's versatility and application across different stencil inspection scenarios.

In summary, the Sunmenta SVII-K100 stencil inspection machine is ideal for electronics manufacturers focusing on quality and precision. From high-volume production lines to small-scale bespoke assembly, this machine serves as a critical component in ensuring that every solder joint meets the stringent quality requirements demanded by modern electronic devices and applications. Its ease of use, coupled with powerful inspection capabilities, makes the SVII-K100 a smart investment for any company looking to maintain a competitive edge in the electronics manufacturing industry.

Customization:

Brand Name: Sunmenta

Model Number: SVII-K100

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Application: Stencil Inspection

Software: Proprietary Software

Inspection Method: 3D AOI

Field Of View: Up To 18.6 mm x 14 mm

Lighting System: Top: Red Coaxial Light, Bottom: Custom White LED Light Source

Enhance your manufacturing process with the Sunmenta SVII-K100 stencil inspection machine. Our stencil inspection machine is designed to meet the rigorous demands of modern electronics production. Manufactured in China and carrying the CE certification, the SVII-K100 is the stencil inspection machine of choice for quality assurance in stencil inspection applications. With a minimum order quantity of just one, you can easily integrate our sophisticated stencil inspection machine into your workflow. Utilize our proprietary software alongside the machine's advanced 3D AOI inspection method to ensure precise measurements and defect identification. The SVII-K100 stencil inspection machine also features a comprehensive lighting system with a top red coaxial light and a custom bottom white LED light source, providing an excellent field of view up to 18.6 mm x 14 mm.
